Distinct from a standard case maker
The round-corner wrapping operation is the reason to choose this machine, not simply its smaller footprint.
FEATURED HORDA EQUIPMENT
ZFM-500B round-corner
case making machine

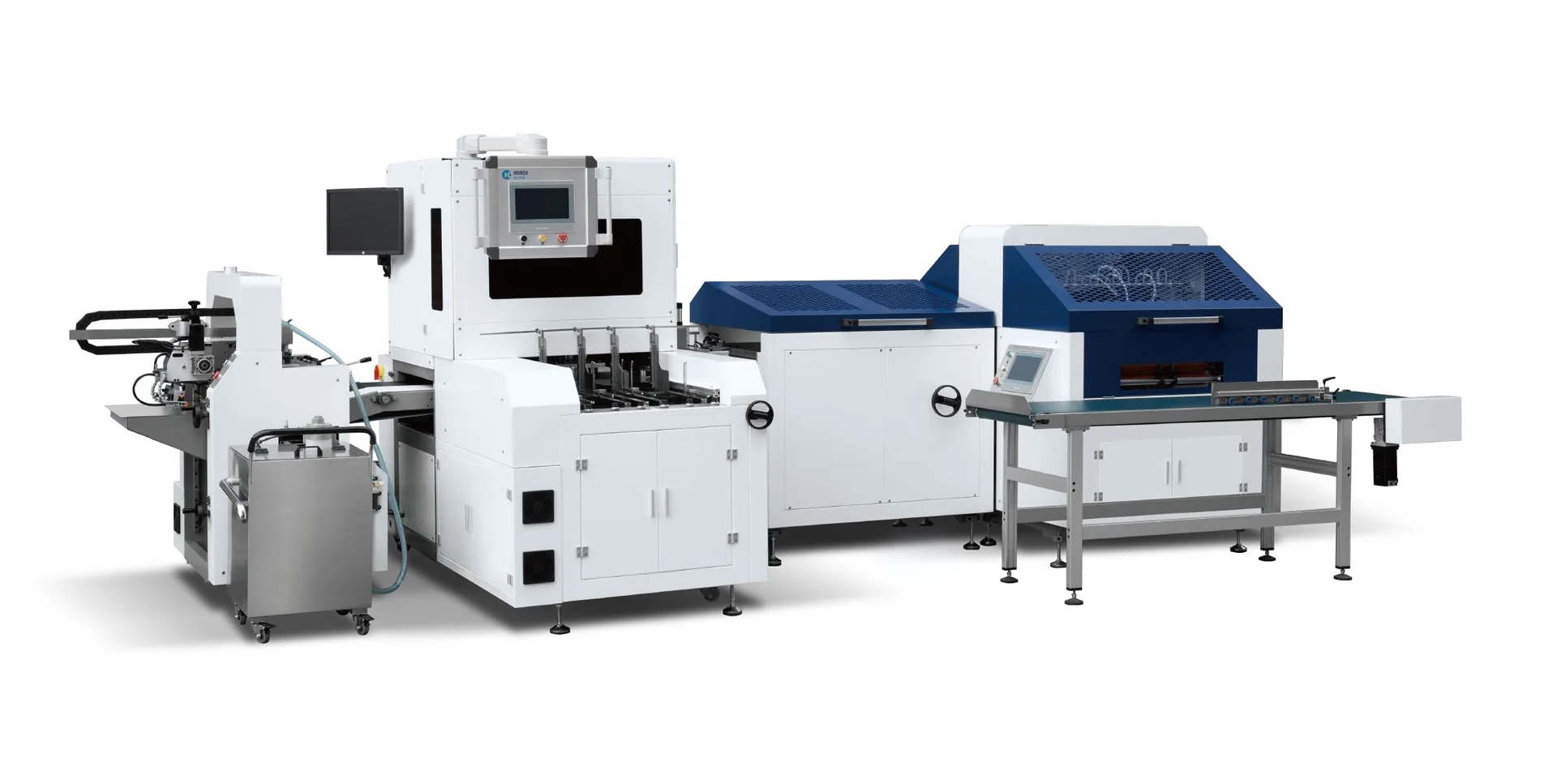

A dedicated automatic case maker for rounded-edge hard cases. It combines board feeding, registration and round-corner four-side wrapping in a compact format range.
Maximum product size350 × 500 mm
Minimum product size60 × 120 mm
WHERE IT FITS
For a curved edge that needs its own process.
Rounded corners change the way face paper wraps around board. The ZFM-500B is the dedicated round-corner option in the supplied catalogue. It forms a hard case; downstream lining, box forming or book finishing still depend on the final product.
Before selection, send the flat board drawing, corner shape or radius target, face paper, board and a real sample. The catalogue does not specify every possible radius or decorative material, so these must be trialed rather than promised from the model name.
Test corner finish
Review folds, face-paper stretch, wrinkles and glue behavior at the actual radius.
Plan the completed product
Confirm whether the customer needs only a hard case or a later lining and assembly workflow.
Structure / Materials / Project scope
VISUAL NOTE 01Inspect the corner with the real materials.
The corner shape changes the paper turn-in. Use a physical sample to discuss the finish; this image does not define an approved radius range.
01Corner geometry+
Send the intended corner drawing or sample.
02Paper turn-in+
Inspect folds, surface marks and glue response.
03Sample approval+
Do not infer every radius from a model name.
CATALOGUE PROCESS
Make the rounded hardcover case.
- 01
Feed face paper and board
- 02
Apply glue
- 03
Register the board and paper
- 04
Wrap rounded edges
- 05
Collect the formed case
2026 CATALOGUE VALUES
ZFM-500B at a glance.
Use these figures to screen the project; verify a sample and quoted configuration for production planning.
| Item | Catalogue value |
|---|---|
| Maximum product size | 350 × 500 mm |
| Minimum product size | 60 × 120 mm |
| Face paper | 100–250 g |
| Board thickness | 1.0–4.0 mm |
| Boards per case | 1–6 |
| Minimum spine width | 8 mm |
| Minimum side-board width | 20 mm |
| Catalogue speed | 25–35 pieces/min |
| Positioning accuracy | ±0.1 mm |
| Power | 19 kW |
| Machine dimensions | 4500 × 3500 × 1800 mm |
Source: HORDA 2026 catalogue, ZFM-500B specification column. The brochure does not state an approved corner-radius range.
BUYER QUESTIONS
Check the corner, material and final assembly.
Will every round-corner design run?
No radius range is given in the catalogue. The board drawing, paper and physical sample should be tested before promising fit.
Can the 500B make the complete gift box?
It makes the rounded case. Lining, a box body and final assembly may be separate steps.
Should I choose it over a ZFM-K?
Choose by the required corner structure first. The ZFM-K series targets standard wrapped cases; the 500B is the dedicated round-corner model.
What should I send for a quotation?
Include flat dimensions, board pieces, intended corner profile, face paper, expected output and photos of the finished product.
This independently operated website presents catalogue information for project review. Confirm the current model revision, configuration, acceptance criteria and commercial responsibility in the written quotation.
